20000 Card Capacity Proximity Access Control and Time & Attendance Terminal

Introduction:

RFID identification based Access controller that is generally used to single entrance security or small office as time attendance recorder. BF830-W can also work as totally standalone or integrate with PC thru TCP/IP. The device can also apply with multi-door controllers directly as a RFID reader mode in an access control and time & attendance total solutions.

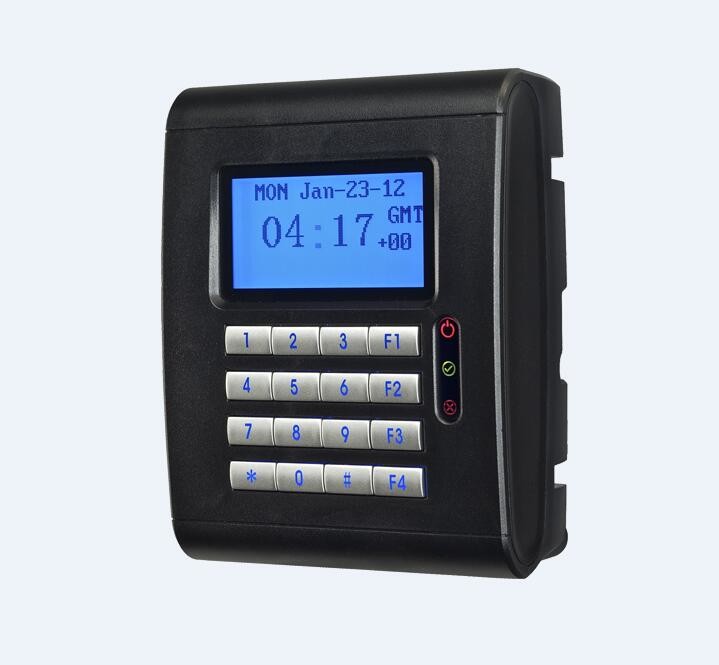

Proximity RFID Access Control Terminal

Features:

Embedded HTTP web browser.
Standalone / network mode.
Card and password verification mode.
Fast register.
Anti pass back / anti duress functions.
Function key / auto function key / holiday setting.
Time zone / time set / group setting.

SPECIFICATION:
Verification Mode: Card / Password
Software Application: SoMac
Card Capacity: 20,000
Communications: TCP/IP, Wiegand/RS485
DIO Support: DI: 3 / DO: 2
Inbuilt Relays (Max. power loading): Door Lock / Ring (120VAC, 0.5A / 30VDC, 1A)
Option: USB / Voice
System Log: 1,536 entries
Entry Log: 65,535 entries
Time Set / Time Zone / Group: 255 / 120 / 255 Sets
Holiday / Ring Setting: Yes / Yes
Remote Control / Event Handle: Yes / Yes
Fast Registry: Yes
Function Key: 400 (Auto/Manual)
Anti-Pass Back / Anti Duress: Yes / Yes
Power Consumption: 440mA ± 5%
Power Requirement: 9 ~ 24VDC / 1A
Operation Temperature: 0°C ~ 65°C
Operation Humidity: 5% ~ 80% RH
Dimension / Weight: 130 x 100 x 52mm / 400g

Remarks:

Web Server, supported by SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods
All products with 2 years warranty.
